Battery Chargers: The FC-A Charger, for the FC-A and WB-A Eagle

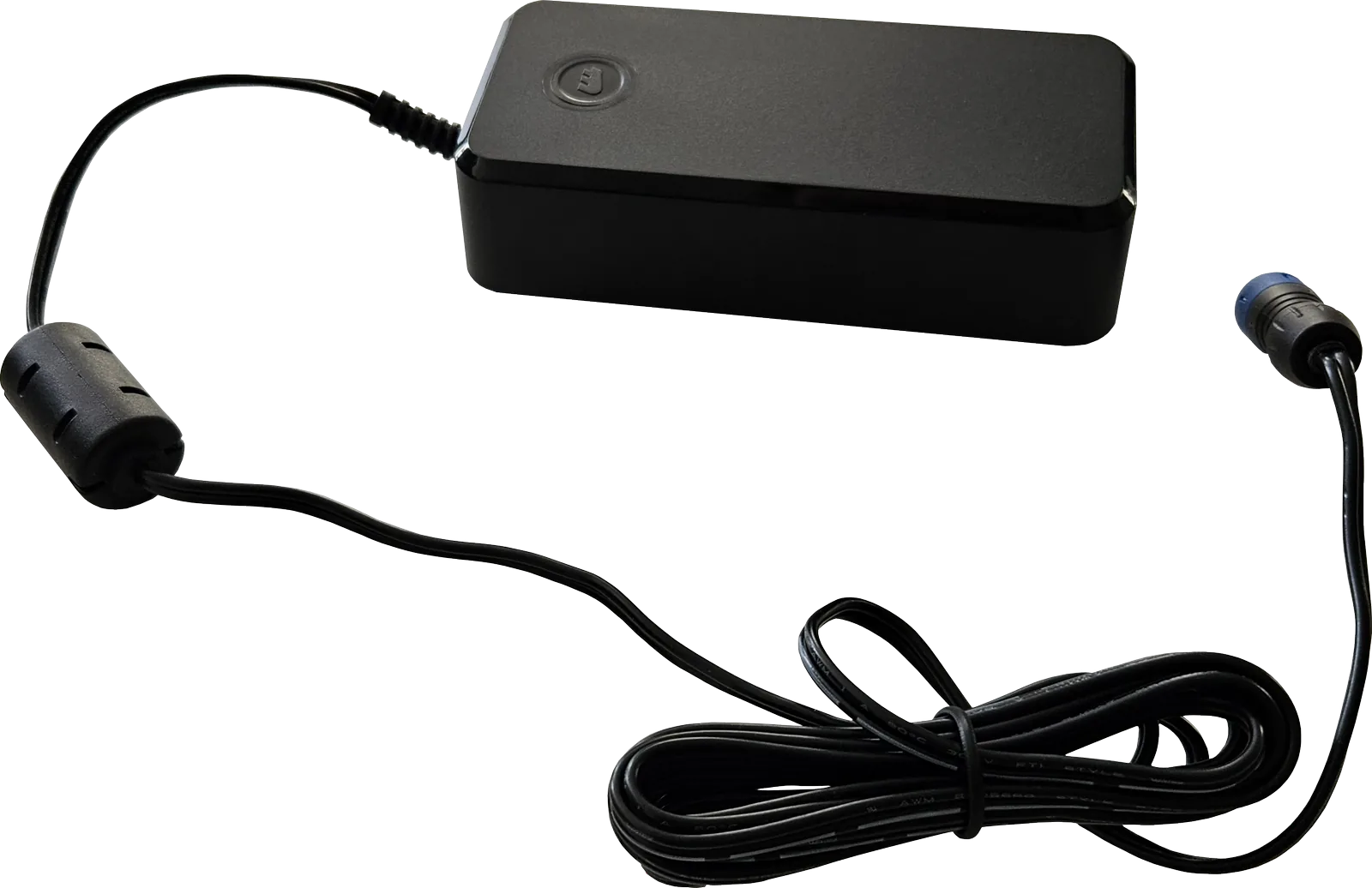

The FC-A Charger, for the FC-A and WB-A Eagle
Accessory

Battery Chargers

Charging Your Pyrodigital Firing Equipment

At a Glance

Two chargers serve the Pyrodigital product range. The FC-A Charger is compatible with the FC-A, the Universal Charger is compatible with the FC-E, WB-E Falcon, DB-A Dragon and FiberCON. Both accept universal mains input and are supplied with a mains connection for the destination country.

Available versions

Operational Role

Use the charger specified for your device's internal VRLA battery system. Chargers are supplied with their corresponding device and can also be ordered separately as replacements or additional equipment.

A separately ordered charger includes the charger and its mains connection. Specify the destination country when ordering so the supplied plug matches your market.

System Compatibility

  • Devices: FC-A, WB-A Eagle, FC-E Raptor, WB-E Falcon, DB-A Dragon Iso-Booster, FiberCON
  • Distinct from the External Power Supply, which runs a device from mains rather than charging its battery.

Technical Specifications

Electrical

Battery chemistry
Lead-acid (VRLA)
Charge voltage
24 VDC
Input voltage
110-220 VAC (worldwide)
Input frequency
50-60 Hz

Mains plug by region

Regions offered
EuropeUnited StatesJapanSouth KoreaSingapore
Ordering
Name the destination country when ordering: the mains lead is region-specific

Charger types

For the FC-A and WB-A Eagle
1.2 A at <29.5 VDC
For the Raptor, Falcon, DB-A Dragon and FiberCON
0.56 A at <29.4 VDC

Connection

Connector
IP67 waterproof click-in connector

Physical

Form factor
External brick with captive lead
