PD 5-Way Splitter
Branch the Pyrodigital network; one input, five outputs.
At a Glance

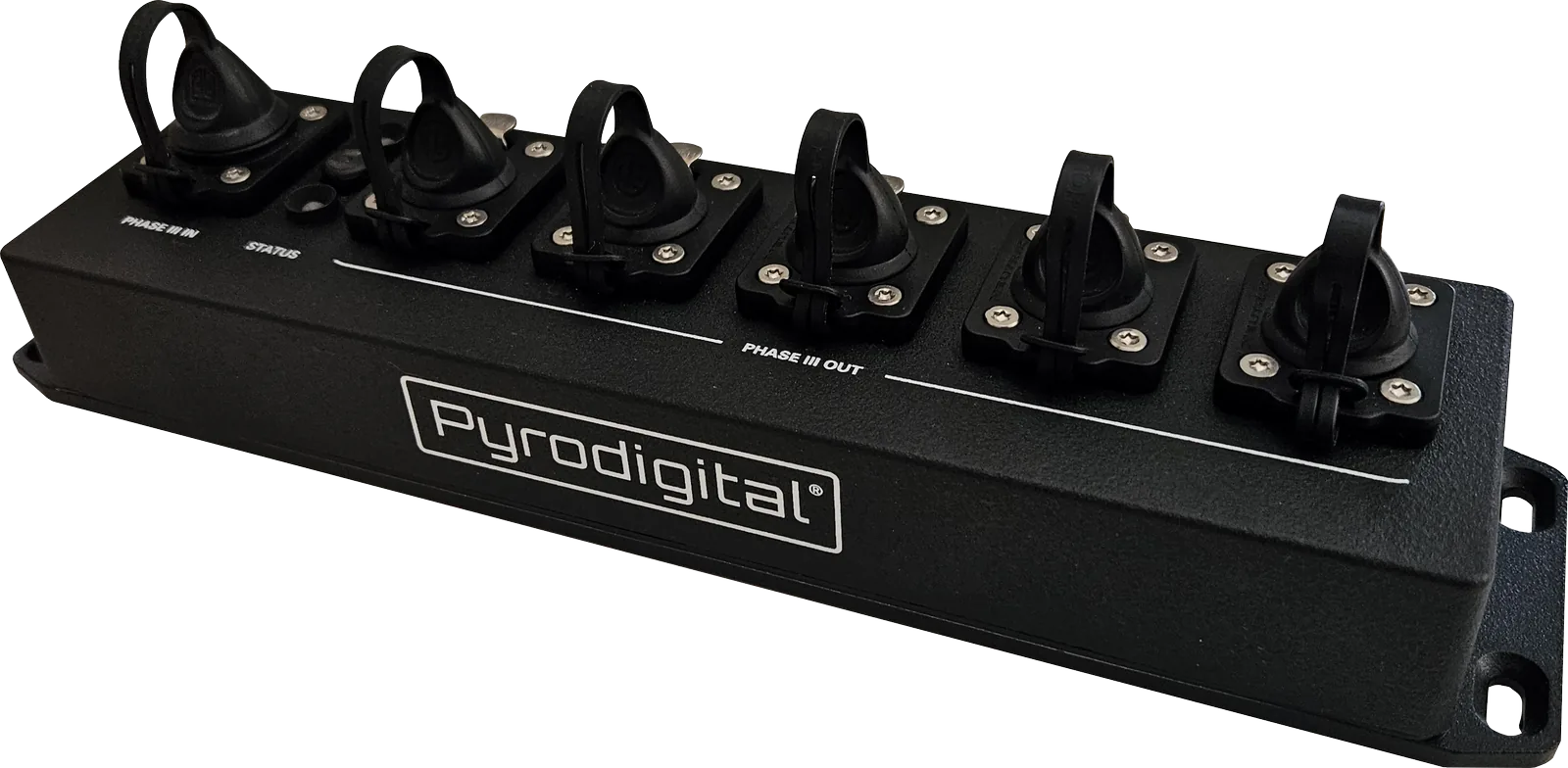

The PD 5-Way Splitter provides one Pyrodigital network input and five outputs for distributing cable routes within your Pyrodigital firing system. LEDs indicate whether the PD Bus is powered and whether communication is present.
Operational Role
Branch the network from a controller output or another available point in the Pyrodigital Network, including a powered network section after a WB-E Falcon, DB-A Dragon Iso-booster or FiberCON Remote Unit. Use PD Network Cables to connect the outgoing branches.
Four mounting points support installation, while the power and communication LEDs provide a local indication of bus activity. PD Bus Cable is available with XLR3 connectors and 0.75 mm² Twinax conductors, in lengths on request.
System Compatibility
- Controllers: FC-A, FC-E Raptor, FC3
- Devices: FM-A, DB-A Dragon Iso-Booster, WB-E Falcon, FiberCON
- Passive splitter on the Pyrodigital network. The FM-A has a 3-way splitter built in; the 5-way splitter is for wider fan-outs at a distribution point.
Technical Specifications
Ports
- Pyrodigital network input
- 1
- Pyrodigital network outputs
- 5
- Connector type
- 3-pin XLR (Pyrodigital network standard)
- Bus-power LED
- Indicates whether the PD Bus is powered
- Communication LED
- Indicates communication on the PD Bus
Physical
- Mounting points
- 4
- Form factor
- Low-profile inline enclosure
